The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Metal silicon junction,majority carrier conduction
Low power loss,high efficiency
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds,0.25 ”(6.35mm) from case
For use in low voltage, high frequency inverters, free
wheeling, and polarity protection applications

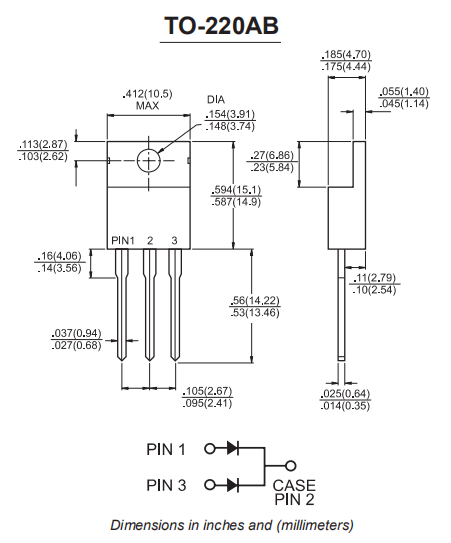

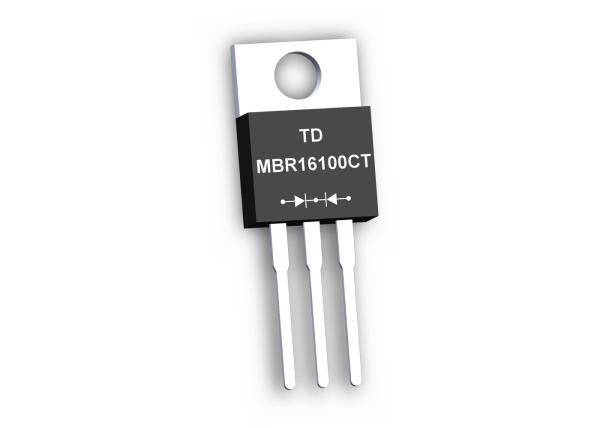

Case: JEDEC TO-220AB molded plastic
Terminals: Leads, solderable per MIL-STD-750,
Method 2026
Polarity: As marked
Mounting Position: Any
Weight:0.08 ounce, 2.24 grams
MAXIMUM RATINGS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
| | SYMBOLS | MBR 1620 CT | MBR 1630 CT | MBR 1640 CT | MBR 1650 CT | MBR 1660 CT | MBR 1670 CT | MBR 1680 CT | MBR 1690 CT | MBR 16100 CT | MBR 16150 CT | MBR 16200 CT | UNITS |
| Maximum repetitive peak reverse voltage | VRRM | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 150 | 200 | VOLTS |
| Maximum RMS voltage | VRMS | 14 | 21 | 28 | 35 | 42 | 49 | 56 | 63 | 70 | 105 | 140 | VOLTS |
| Maximum DC blocking voltage | VDC | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 150 | 200 | VOLTS |
| Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1) | I(AV) | 16.0 | Amps |
| Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) | IFSM | 150.0 | Amps |
| Maximum instantaneous forward voltage at 5.0A | VF | 0.6 | 0.75 | 0.80 | 0.90 | Volts |
| Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃ | IR | 0.1 | mA |
| 20 |
| Typical junction capacitance (NOTE 1) | CJ | 400 | pF |
| Typical thermal resistance (NOTE 2) | RθJC | 2 | ℃/W |
| Operating junction temperature range | TJ, | -65 to +150 | ℃ |
| Storage temperature range | TSTG | -65 to +150 | ℃ |
Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2.Thermal resistance from junction to case.

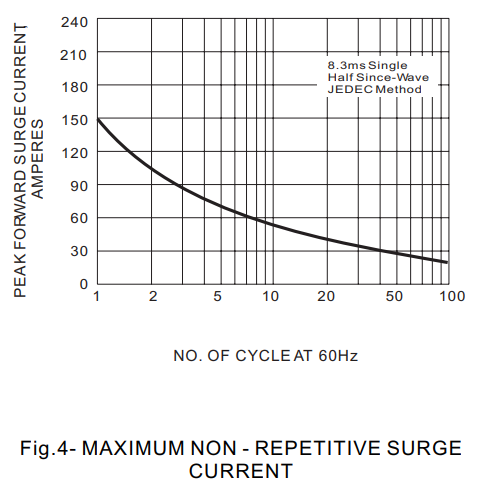

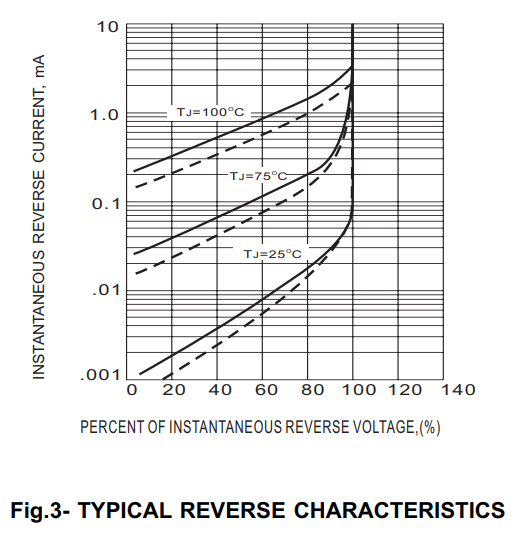

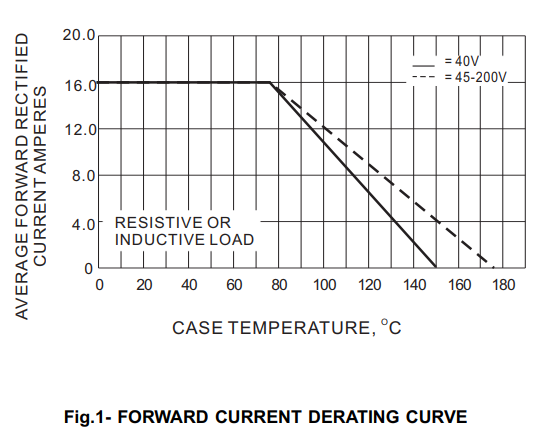

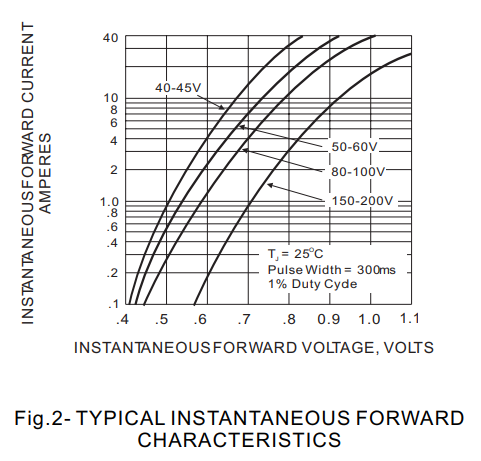

CHARACTERISTIC CURVES
